1. Description of Useful nitrogen generator plant system for tire inflation

Applications
- Food packaging (cheese, salami, coffee, dried fruit, herbs, fresh pasta, ready meals, sandwiches,etc. ..)
- Bottling wine, oil, water, vinegar
- Fruit and vegetable storage and packing material
- Industry
- Medical
- Chemistry

PSA Nitrogen Generator System is used worldwide.

Principle of Operation

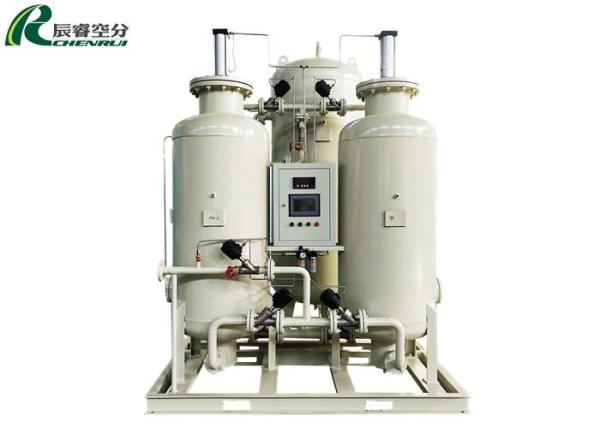

The oxygen and nitrogen generators are constructed according to the principle of operation P.S.A. (Pressure Swing Adsorption) and are composed by a minimum of two absorbers filled up with molecular sieve.The absorbers are crossed alternatively by the compressed air (previously purified in order to eliminate oil, humidity and powders) and produce nitrogen or oxygen. While a container, crossed by the compressed air, produces gas, the other regenerates itself losing to pressure atmosphere the gases previously adsorbed. The process comes repeated in cyclical way. The generators are managed by a PLC.
2. Process Flow Brief Description

3. Technical Features
1). Full Automation
All systems are designed for un-attended operation and automatic Nitrogen demand adjustment.
2). Lower Space Requirement
The design and Instrument makes the plant size very compact,assembly on skids,prefabricated from factory.
3). Fast Start-up
Start-up time is only 5 minutes to get desired Nitrogen purity.So these units can be switched ON & OFF as per Nitrogen demand changes.
4). High Reliabiity
Very reliable for continuous and steady operation with constant Nitrogen purity.Plant availability time is better than 99 % always.
5). Molecular Sieves life
Expected Molecular sieves life is around 15-years i.e. whole life time of nitrogen plant.So no replacement costs.
6). Adjustable
By altering flow,you can deliver nitrogen with precisely the right purity.


FAQ:
1. Are you manufacturer or Trade Company?
We are the manufacturer of nitrogen Generator, founded in 2005
2. What's the order nitrogen generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Contract confirmation---provide correct contract details.
e. Payment terms--- Negotiable.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
h. Installation and commissioning
3. What terms of payment you use?
T/T, L/C etc.
4. How to get a prompt quotation of nitrogen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) N2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours))
2) N2 purity: _____%
3) N2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V / PH / HZ
5) Application:
6) Project Location:

    Hangzhou Chenrui Air Separator Installation Manufacture CO., Ltd located in the city of Fuyang, Hangzhou. It’s one of the most intelligent air separator equipment manufactures with low energy consumption and high efficiency in China. We focus on providing the most advanced, reasonable and energy-saving air separation equipment in this industry.

    To comply with the market's demands, Chenrui always determines to pioneer, innovate and progress. It’s leading in many fields like Fully implements QES management system.,Achieved National Industrial Product Production License, State-level High-tech Enterprises Certification, 3 invention patents, 33 utility model patents and so on.

    Continuous technological innovation and upgrading, brings the value for the whole industry and society, which makes the air separator equipments more individual, intelligent and high-speed.

    Advanced production technology will surely achieve extraordinary products. Chenrui pioneered vacuum dust removal molecular sieve filling system, large shot blasting machine, automated welding process, efficient production process and excellent production environment let CHENRUI brand become the benchmark of air separation equipment manufacturing industry.

    In the era of information and globalization, Chenrui always insists on building long-term cooperation with design institutes and research institutes. Based on the actual needs, it can introduce all kinds of high-tech equipments and production technology.

As a supplier of air separator equipment system, we have 5 main products:

    1. PSA oxygen generator

    2. PSA nitrogen generator

    3. VPSA oxygen generator

    4. Cryogenic air separator plant

    5. Small liquid nitrogen generator

    Our generators are widely used in petrochemical industry, the electronics industry, textile industry, pharmaceutical industry, food and beverage industry, medical cosmetology industry, animal husbandry and so on.

Sincerely hope to promote, by joint our efforts, both trade and friendship to our mutual advantage.
